Brand New Machinery Presses

    CATALOGUE BRAND NEW MACHINERY

Hot presses

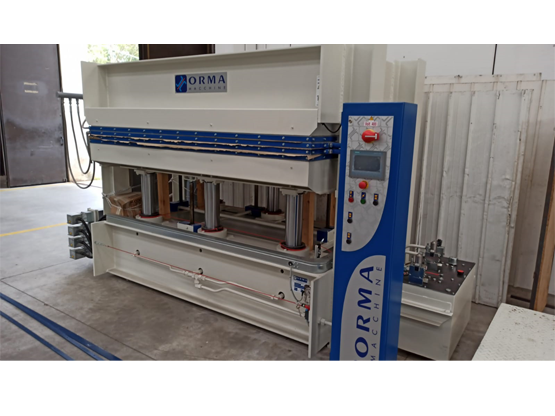

Ormamacchine / NPC DIGIT 6/90

Fabricated platens 2500 x 1300 mm
6 cylinders, 70 mm diameter
Total thrust 90 ton
Cylinder stroke / press opening 400 mm
Electric boiler 21 kW for thermal oil heating

CONTACT US

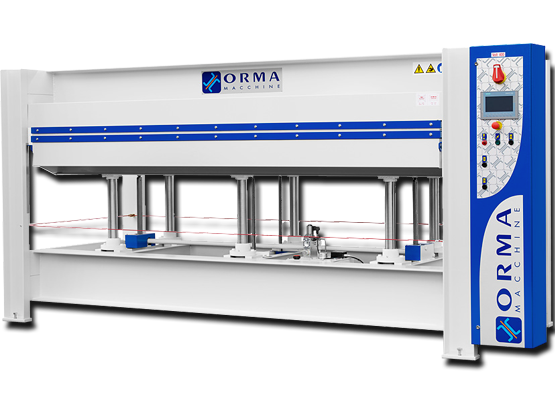

Ormamacchine / NPC DIGIT 6/120

Drilled solid steel platens 3500x1300 mm
No. 4 intermediate platens (no. 5 daylights)
6 cylinders, 85 mm diameter, stroke 650 mm
Press opening 1400 mm (loading of at least
155 mm thickness in each daylight)
Total thrust 120 ton
Digital controls
Electric boiler for thermal oil heating
Overall dimensions 4350 x 1700 x 3410 h mm
Weight 12000 kg

CONTACT US

Ormamacchine / NPC DIGIT 6/95

Fabricated platens 3000x1300 mm
6 cylinders, 70 mm diameter
Total thrust 90 ton
Cylinder stroke / press opening 400 mm
Digital controls
Electric boiler 21 kW for thermal oil heating


CONTACT US

Cold Presses

Ormamacchine / P25/2

Cold press Ormamacchine type P 25/2
Platens dimension 2500 x 1300 mm
N.2 pressing pistons diameter 65 mm
Stroke of pistons and platen opening 500 mm
Max pressure 10 tons
CE rules
Voltage 400/3/50

7560 €

CONTACT US

Membrane Presses

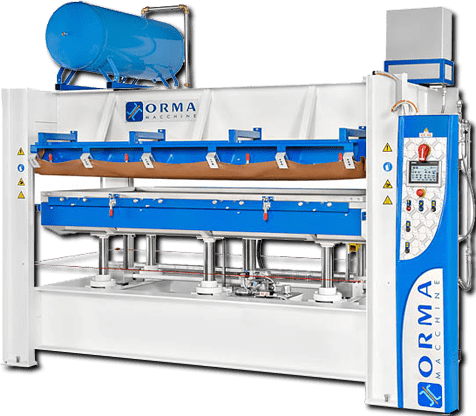

Ormamacchine / OMNIA GREEN 25/13

Drilled solid steel platens 2500x1300 mm
Useful dimensions for 3D 2380x1180 mm
Total thrust 120 ton
Max. specific pressure 4 kg/cm2
Lower movable platen
No. 6 pressing cylinders, diam. 85 mm stroke 450 mm
Electric boiler 21 kW for thermal oil heating
Side loading
Working height of vacuum chamber 60 mm
Machine complete with membrane kit
LAYOUT: http://goo.gl/BYP1lU

CONTACT US

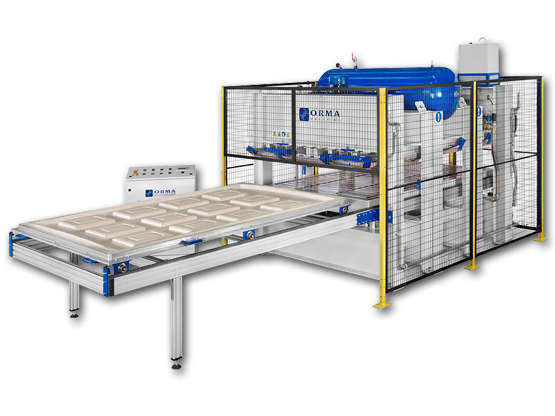

Ormamacchine / AIR SYSTEM AUTOMATION TRAYS 33/14

1. DOUBLE PVC UNROLLER EQUIPMENT
2. LOADING TABLE WITH SCISSOR LIFT TO LIFT UP THE TRAY, PVC PULLING AND POSITIONING DEVICE WITH PNEUMATIC CUTTING UNIT, SCANNER UNIT
3. No. 3 TRAYS WITH MOVABLE PINS TO LIFT UP THE WORKING PIECES
4. MEMBRANE PRESS AIR/SYSTEM AUTOMATION 30/14 - 3 TRAYS
Tray 3300x1400 mm, useful working dimensions 3200x1340 mm
Intermediate flange 20 mm
Working chamber height 75 mm
Total thrust 500 ton
Max. specific pressure 8 kg/cm2
Lower movable platen
No. 10 Pressing cylinders, diam. 140 mm
Bar with electromagnetic actuators for positioning the pins inside the press
Membrane with fasten locking/unlocking system
Thermal oil heating with electric boiler, max. temperature 150 °C
Safety grid protections (no complete covering like in the picture)
5. UNLOADING TABLE WITH SCISSOR LIFT TO LOWER THE TRAY

LAYOUT: http://goo.gl/Hwdxer

CONTACT US

Frame presses

Ormamacchine / FUTURA 35/25

Useful working dimensions 3500x2500 mm
V 400/3/50 - CE Rules

CONTACT US

Ormamacchine / FUTURA ECO 30-20

Useful working dimensions 3000x2000 mm
V 400/3/50 - CE Rules

CONTACT US

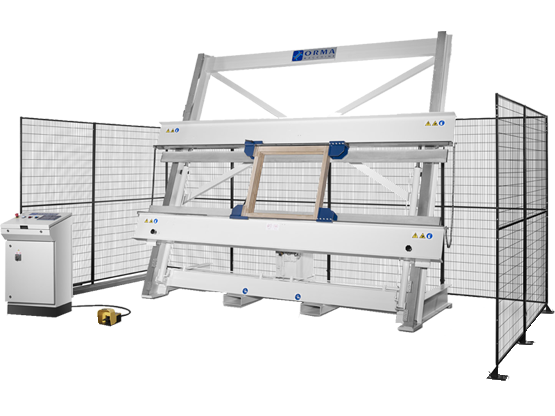

Ormamacchine / FUTURA CNC 30/17 - SERIE P

Useful working dimensions 3000x1700 mm
No. 4 vertical cylinders ø 90/45 mm, stroke 800 mm, total thrust 28 ton
No. 2 horizontal cylinders ø 90/45 mm, stroke 150 mm, total thrust 12 ton
Functioning through CNC control
Indipendent control board
Tilting pneumatic preassembling unit by means of sensors and no. 8 pistons
Jig kit for profiled frames
Bar code reading gun
Additional push-button console for remote control

CONTACT US

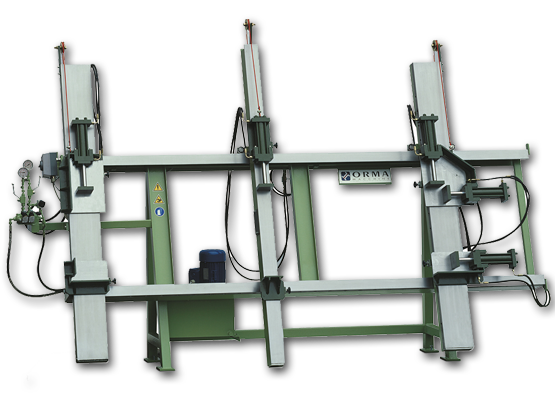

Ormamacchine / DE NEW 30/17

Useful working dimensions 3000x1700 mm
2 vert. cilynders ø 50/28 mm, stroke 150 mm
total thrust 2.5 tons
2 horiz. cilynders ø 50/28 mm, stroke 150 mm
total thrust 0.62 tons

CONTACT US
