Nouvelles Machines Presses


Presses a chaud

Ormamacchine / NPC DIGIT 25/18

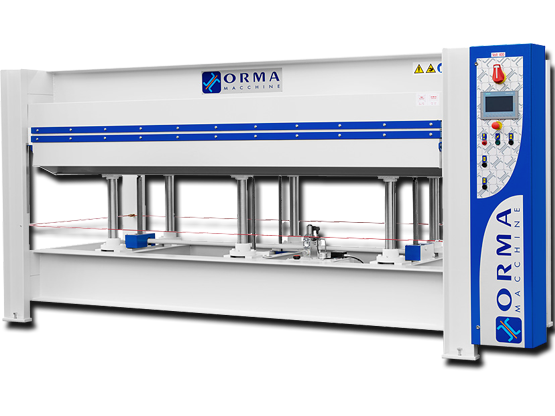

Press NPC/DIGIT 25/18 AF-BO
n.6 pressing cylinders Diam.=140 stroke=400
Solid drilled steel platens dimension 2500x1800mm
n.2 Solid drilled steel intermediate platens dim. 2500x1800mm
mylar covered platens
Max. total thrust 300 ton.
Control board in case
electric boiler for thermal oil heating 60 kw
possibility to partally use the boiler
Timer opening
Keyboard with display
Emergency rope


Pdf Layout


124.000 €


Presses a froid

Ormamacchine / PFL DIGIT 25/13

No. 1 cold pressing plant Ormamacchine
Lifting platform: 2000x1000 mm
Powered disc conveyor 3000x1300 mm
Lifting platform: 2000x1000 mm
Idle roller conveyor (on top of the platform) 2500x1300 mm
Idle roller loading conveyor 3000x1300 mm
Press: PFL DIGIT 25/13
n. 6 Pistons Diam.=90/70
Pistons stroke 500 mm
Total thrust 120 ton
Platens opening 1000 mm
End loading 1300 mm side
Digital controls
Touch screen operator panel
Idle roller outfeed conveyor for PFL 25/13
Glue spreader excluded

Pdf Layout


Presses a membrane

Ormamacchine / OMNIA GREEN 2M 2500x1300

Membrane press OMNIA GREEN 2M 2500x1300 mm
Solid drilled steel platens 2500x1300 mm
no. 10 pressing cylinders diam.100 stroke 450 mm
Total thrust 200 t
Platens opening 450 mm
Loading side 2500 mm
Membrane kit, upper and lower membrane included
n.2 heat exchangers for air heating
Digital controls
Touch screen operator panel
Heating system: electric heater for oil 36 kW split
for upper and lower platen (18 + 18 kW)
Emergency rope



Ormamacchine / FUTURA ECO 30-20

Useful working dimensions 3000x2000 mm
V 400/3/50 - CE Rules

More Info


Ormamacchine / DE NEW 30/17

Useful working dimensions 3000x1700 mm
2 vert. cilynders ø 50/28 mm, stroke 150 mm
total thrust 2.5 tons
2 horiz. cilynders ø 50/28 mm, stroke 150 mm
total thrust 0.62 tons
