Hot presses

Ormamacchine / NPC 10/200

Hot hydraulic press type NPC 10/200 (Second hand)
Platen dimension: 3200x1500 mm
Upper and lower platens type: SOLID DRILLED STEEL
Solid drilled steel intermediate platens: 3 (4 openings, 80 mm each)
10 cylinders diam. 120 mm
Stroke/opening: 400 mm
Max thrust: 200 Ton
Overall dimension: 4000x1800x2300 mm
Weight: 14.000 Kg
Machine newly painted and overhaled according to CE norms

2018/S

35.500 €

Electric heater for thermal oil complete of pump
pipe and control board

2018/S

4.500 €

CONTACT US

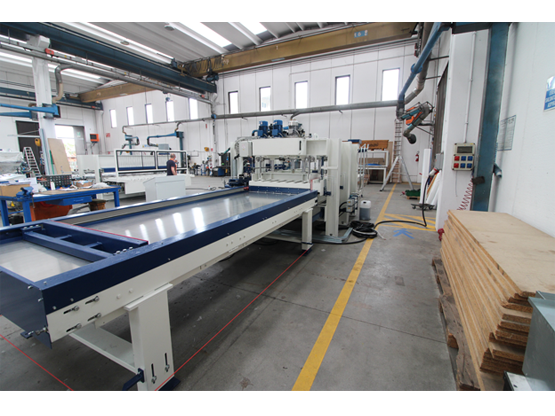

Through feed press lines

Colombo / LCC 44/14

Thorugh feed autonatic pressing line composed as follows
LOADING BELT: dimension 1400x4600 mm (distance between roller)
HYDRUALIC SINGLE DAYLIGHT HOT PRESS
TYPE: LCC 44/14 (Manufacturer: Colombo)
Press platen dimension: 4400x1400 mm
Max. total thrust: 370 Tons
Max. Specific pressure on 100% of the platen surface: 6 Kg/cm2
Pressing cylinders: 10 – Diam. 120 mm – Stroke 150 mm
Upper movable platen (down-stroke design)
Upper platen raising cylinders: 2 - stroke 150 mm
Loading side: 1400 mm
Opening between platens: 150 mm
SOLID DRILLED STEEL heating platens
Blowing system on the lower platen
Exclusion of one couple of cylinders
UNLOADING STACKER (belt type)
Belt dimension 1400x4600 mm (distance between rollers

2019/S

85.000,00 €

The pressing line is refurbished and newly painted
The loading belt, the belt in press and the stacker belt are NEW
OPTION:
HEATING SYSTEM: 45 kW Electric heater for water. Max. temperature: 80°C

2019/S

6.800,00 €

AS ALTERNATIVE HEATING SYSTEM: 60 kW Electric heater for thermal oil
Max. temperature: 120°C

2019/S

9.800,00 €

CONTACT US

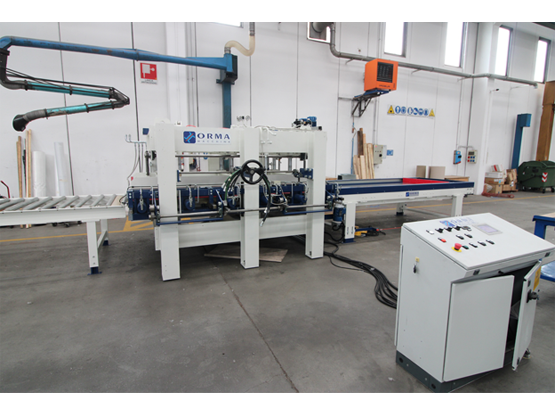

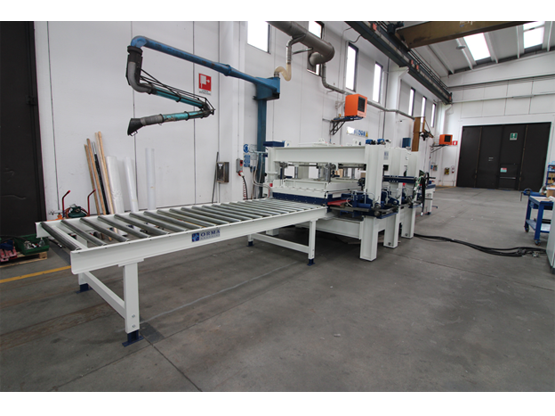

Ormamacchine / LCC 44/14

Ormamacchine through feed press line, type LCC 44/14
Loading belt conveyor
Ormamacchine press LCC 44/14
Drilled solid steel platens 4400x1400 mm
No. 10 cylinders, 100 mm diameter, 150 mm stroke
Total thrust 270 ton
Specific pressure 5.2 kg/cm2
Perimeter control of platen parallelism by sensors
Brushing units for internal and external surface of mylar belt
Blowing unit on bottom platen
Heating plant excluded
CE Standards
Voltage 400/3/50
Idle roller outfeed conveyor
Price for painted and reconditioned plant

Layout

2019/S

85.000,00 €

CONTACT US
